OpenL2M Screenshots

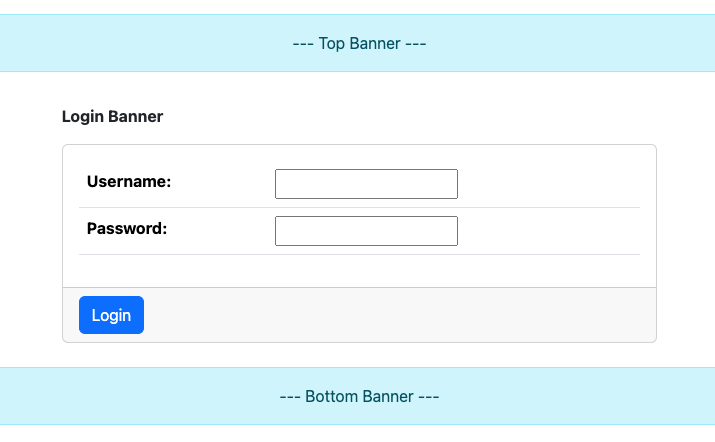

  • Login Window: Can show configurable login, top, and bottom banners.

_images/login-window.png

  • Devices Menu: Shows the groups and devices you can access

_images/devices-menu.png

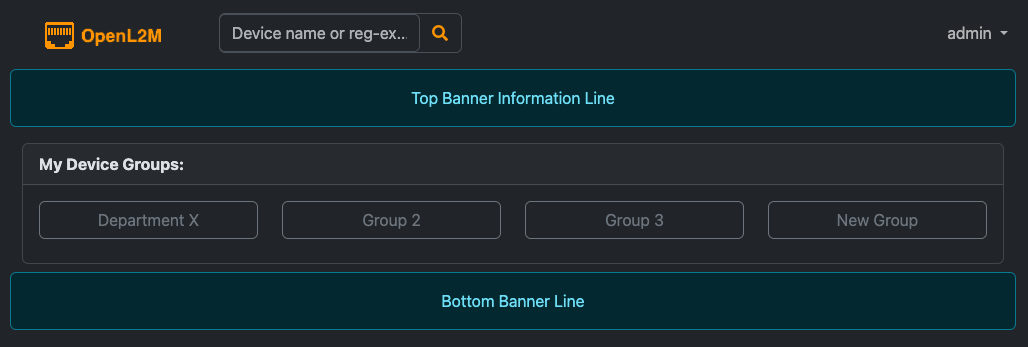

  • Dark Mode Devices Menu: Dark Mode view of the groups and devices you can access

_images/devices-menu-dark-mode.png

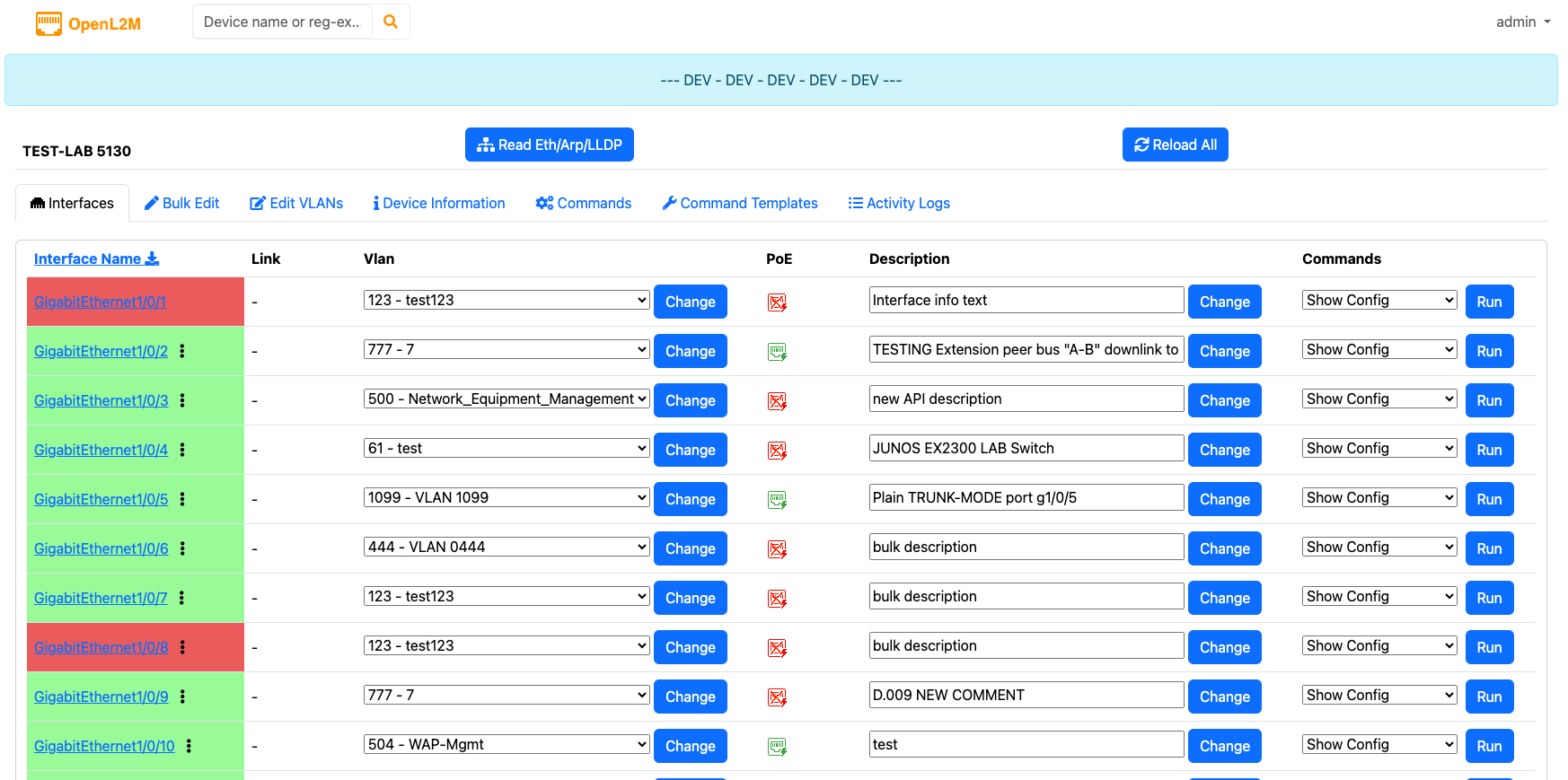

  • Interfaces Menu: Edit a single interface at a time

_images/interfaces-menu.png

  • Interfaces Tag/Trunk Edit: Edit untagged and 802.1q-tagged vlans on an interface

_images/interface-tag-edit.png

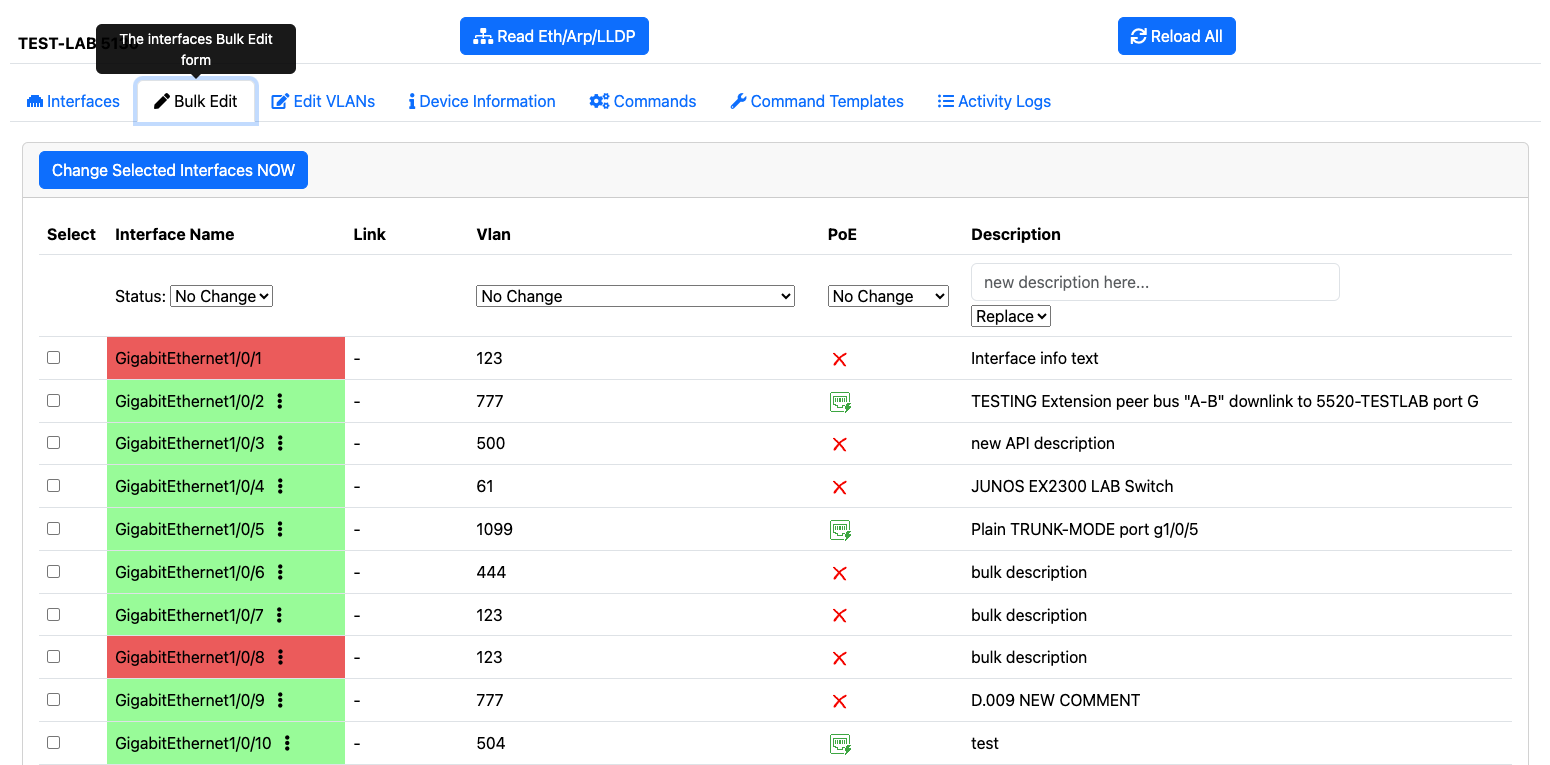

  • Bulk-Edit Menu: Edit multiple interfaces at once

_images/bulkedit-menu.png

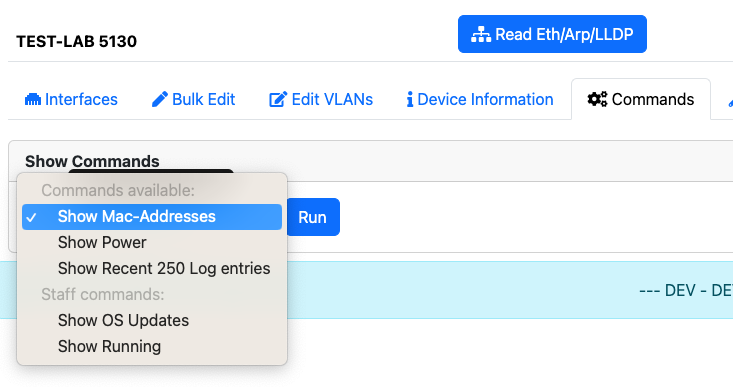

  • Commands Menu: Run pre-defined commands on the device

_images/commands-menu.png

  • Command Templates Menu: Run pre-defined commands with user-input on the device

_images/command-templates-menu.png

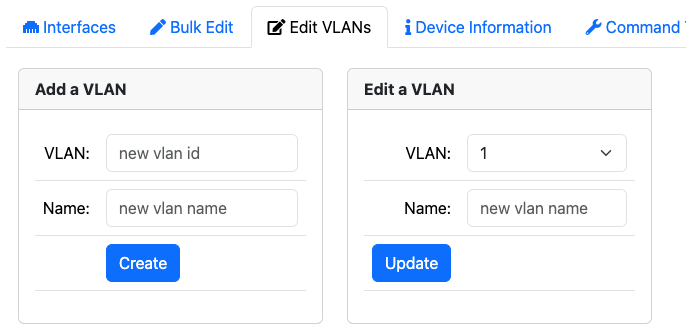

  • VLAN Edit Menu: Add, Rename, or Delete vlans

_images/vlan-edit.png

  • In-Progress Spinners: Submit buttons have ‘in progress’ indications by way of showing ‘spinners’

_images/processing.png

  • Device Connections Graph:

        ---
title: Device connections for 'ROUTER'
---
flowchart LR
DEVICE["ROUTER"]
REMOTE_1["fa:fa-cogs Switch-1"]
DEVICE_INTERFACE_1("Ten-GigabitEthernet1/0/1")
REMOTE_INTERFACE_1("Ten-GigabitEthernet4/0/49")
DEVICE --- DEVICE_INTERFACE_1
DEVICE_INTERFACE_1 <==> REMOTE_INTERFACE_1
REMOTE_INTERFACE_1 --- REMOTE_1

REMOTE_2["fa:fa-cogs Switch-2"]
DEVICE_INTERFACE_2("Ten-GigabitEthernet1/0/47")
REMOTE_INTERFACE_2("Ten-GigabitEthernet1/0/52")
DEVICE --- DEVICE_INTERFACE_2
DEVICE_INTERFACE_2 <==> REMOTE_INTERFACE_2
REMOTE_INTERFACE_2 --- REMOTE_2

REMOTE_3["fa:fa-cog Switch-3"]
DEVICE_INTERFACE_3("Ten-GigabitEthernet1/0/48")
REMOTE_INTERFACE_3("Ten-GigabitEthernet1/0/51")
DEVICE --- DEVICE_INTERFACE_3
DEVICE_INTERFACE_3 <==> REMOTE_INTERFACE_3
REMOTE_INTERFACE_3 --- REMOTE_3

REMOTE_4["fa:fa-cogs Core-Router-1"]
DEVICE_INTERFACE_4("HundredGigE1/0/53")
REMOTE_INTERFACE_4("HundredGigE1/2/4")
DEVICE --- DEVICE_INTERFACE_4
DEVICE_INTERFACE_4 <==> REMOTE_INTERFACE_4
REMOTE_INTERFACE_4 --- REMOTE_4

REMOTE_5["fa:fa-cogs Core-Router-2"]
DEVICE_INTERFACE_5("HundredGigE1/0/54")
REMOTE_INTERFACE_5("HundredGigE1/2/4")
DEVICE --- DEVICE_INTERFACE_5
DEVICE_INTERFACE_5 <==> REMOTE_INTERFACE_5
REMOTE_INTERFACE_5 --- REMOTE_5
