Command Templates

Command Templates allow you to administratively define commands with variables in them. These variables can be filled in by users using a form presented in the device “Command Templates” tab. This provides tremendous flexibility in giving users in a controlled fashion more visibility into the device.

Command Template Configuration

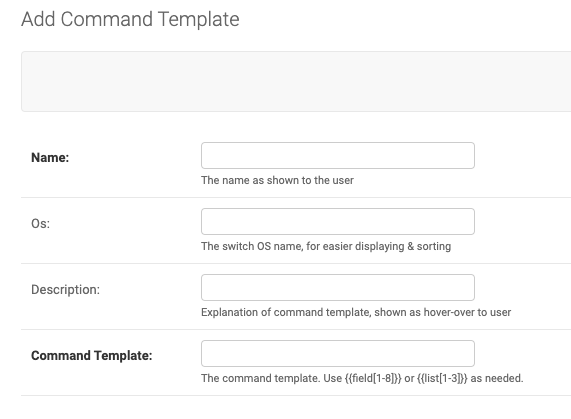

The first two fields are the template name, and OS. The OS field is only to allow easier displaying when selecting a template in the device administration form; it is not shown to the user!

The description will be shown as a hover-over text over the template name.

The Command Template is the special sauce. Here you can use up to 8 freely definable input fields, and up to 5 pick lists, i.e lists where you can pre-configure the selectable values.

You can reference these fields by enclosing them in double curly brackets, i.e. between {{ and }}

../_images/command-template-admin-field.png

../_images/command-template-admin-list.png

Examples

Configuration is best explained with some examples:

Show ANY ACL

A template where the user can display an Access Control List of their desire, the command template could be:

display acl {{field1}}

../_images/command-template-admin-example.png

Choose specific ACL

A template where the user can choose the ACL number from a pre-configured list would be defined as follows:

First, define List 1 as eg. “1001,1002,1003”

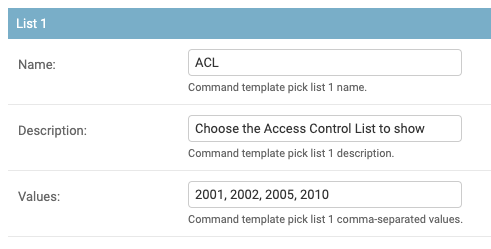

../_images/command-template-admin-list1-example.png

Then define the template as

show acl {{list1}}

Note

Parsing of list strings is very simple. “1,2,3” is NOT the same as “1, 2, 3”. The first are 3 single character strings, the second are 3 dual-character strings!

Regular Expressions To Match Fields

The Regex value for a field, if set, configures a regular expression that the input data for this field will need to match. If no match, running of the command template will be denied and an error shown to the user.

This uses Python 3 regular expression syntax, and the re.match() function, as defined at doc:https://docs.python.org/3/library/re.html#regular-expression-syntax <https://docs.python.org/3/library/re.html#regular-expression-syntax>

You likely want to explicitly match the start and end of the input, by using the ^ (caret) and $ (dollar sign) characters at start and finish.

Here are some matching pattern examples:

Any single word:

^\\w*$

Any number:

^\\d+$

IPv4 address or netmask:

^\\d+\\.\\d+\\.\\d+\\.\\d+$

IPv4 subnet in cider notation:

^\\d+\\.\\d+\\.\\d+\\.\\d+\\/\\d+$

Simple IPv6 network:

^[\\w\\d\:]*\\/\\d+$

Ethernet address in colon notation:

^[0-9a-fA-F]{2}:[0-9a-fA-F]{2}:[0-9a-fA-F]{2}:[0-9a-fA-F]{2}:[0-9a-fA-F]{2}:[0-9a-fA-F]{2}$

Ethernet address in hyphen notation:

^[0-9a-fA-F]{2}\\-[0-9a-fA-F]{2}\\-[0-9a-fA-F]{2}\\-[0-9a-fA-F]{2}-\\[0-9a-fA-F]{2}-\\[0-9a-fA-F]{2}$

Ethernet address in Cisco dot notation:

^[0-9a-fA-F]{4}\\.[0-9a-fA-F]{4}\\.[0-9a-fA-F]{4}$

Here is an example of a free form field that matches numbers only:

../_images/command-template-admin-field-example.png

Simplifying output

Sometime you want to show a ‘status’ to the user, depending on the output of the command. E.g. for a firewall rule, you may want to show ‘Allowed’ or ‘Denied’, instead of the full command output.

../_images/command-template-admin-output-matching.png

If you set the Match RegEx field, the output will be searched for this regular expression. If it is found, instead of the command output, the value of the Match Text field is shown. If it is not found, the Fail Text is shown.

If you set the Output Lines Filter regular expression, in addition to the above output, the command output lines that match this regular expression are added to the output.

Here is a table explaining what is shown depending on settings:

Command Output
Match Regex value	Output Filter value	Output Shown
Not defined	Not defined	Normal command output
Defined, but NOT matching output	Not defined	Value of ‘Fail Text” shown
Defined, and matching output	Not defined	Value of ‘Match Text” shown
Not defined	Defined	Only the output lines matching the filter
Defined, but NOT matching output	Defined	Value of ‘Fail Text” shown, followed by output lines matching the filter
Defined, and matching output	Defined	Value of ‘Match Text” shown, followed by output lines matching the filter

Using Command Templates

Once a command template has been defined, you can assign it to any Switch (device) object you like. Go to the proper Switch admin page, and simple select the command template from the list.
